SIPs Construction

Effective and efficient

The Kingspan TEK Building System comprises 142 mm or 172 mm thick Structural Insulated Panels (SIPs) with a high performance fibre-free rigid urethane insulation core, sandwiched between two layers of Oriented Strand Board type 3 (OSB/3). It is used to construct walls and roofs with intermediate floors using I-beams or open web joists.

Can achieve whole wall and roof U-values as good as 0.09 W/m²K
Air leakage levels can be as good as 0.08 air changes per hour at normal pressures (1 m³/hour/m² at 50 ^pa)
Can create efficient buildings with very low fuel bills.

How the TEK® Building System works

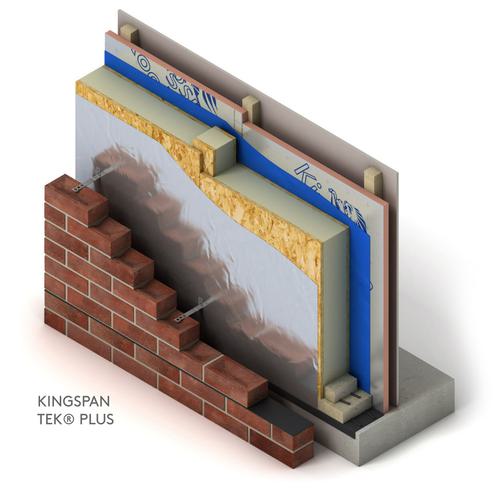

Kingspan TEK SIPs panels

Benefits of building with structural insulated panels

Recognised by major building warranty providers such as Building Life Plans and NHBC
BBA certified and CE marked
Quick to build - follow on trades can start earlier
Creates energy efficient buildings with very low fuel bills
A robust structure that allows for flexible layouts and open spaces
Minimal on-site waste

Offsite construction for onsite efficiency

Choose an offsite method of construction for efficiency and performance:

Reduced downtime and delay due to weather (compared to masonry construction)
Build accuracy with components built to a detailed plan
Reduced on-site waste with a large proportion of the structural frame built offsite
Less on-site labour costs with our prefabricated wall systems ready to be assembled at site
Improved health and safety on-site, as more work is carried out offsite in a controlled factory environment.

Did you know Kingspan TEK can also be used to create roofs? Kingspan TEK panels are designed and cut to enable the building to be constructed quickly and efficiently on-site. Particularly useful when designing and building structures for sites that require less disruption and delay.

Kingspan TEK Building System

Buildings constructed with the Kingspan TEK Building System can have extremely low levels of energy use. As a result, the Kingspan TEK Building System can be the perfect building fabric solution for Passivhaus design, also offering design flexibility for modern open-plan living.

Rapid on-site build time

Quick to build - factory made panels go up fast, reducing build time and disruption

Design flexibility

SIPs are commonly used in constructing external walls and roofs. Paneled roof structures eliminate the requirement for trusses and can simplify the process of constructing "room in the roof" solutions

Airtightness

The TEK Building System’s proprietary jointing system can create a very air-tight structure. Air leakage levels can be as good as 0.08 air changes per hour at normal pressures (approximately 1 m3/hour/m2 at 50 Pa)
